Light Bulb

A light bulb modeled in SolidWorks, from a cutaway of its internals through to a finished render. A short study in how raw CAD geometry turns into a photoreal image.

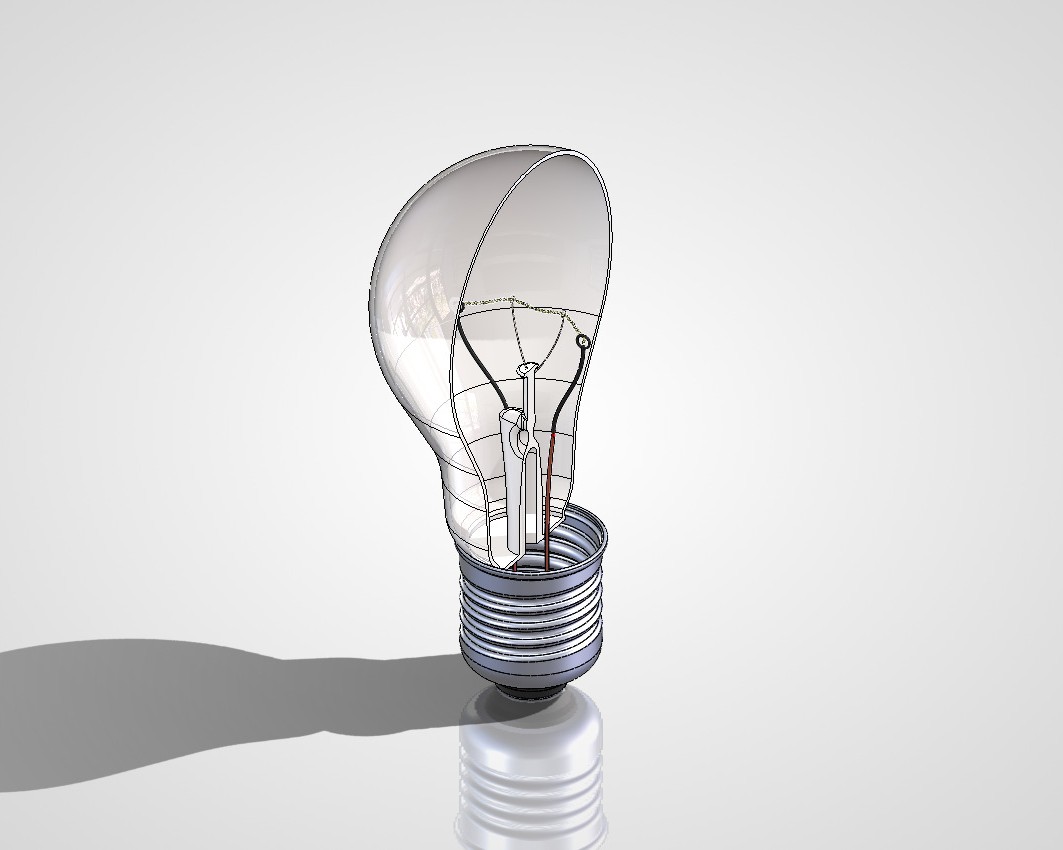

SolidWorks section view cutting the bulb to show its internal geometry.
The finished light bulb render: glass envelope and glowing filament.
